2CPX045916R9999
Part Number: 2CPX045916R9999
Product Information
Extended Description

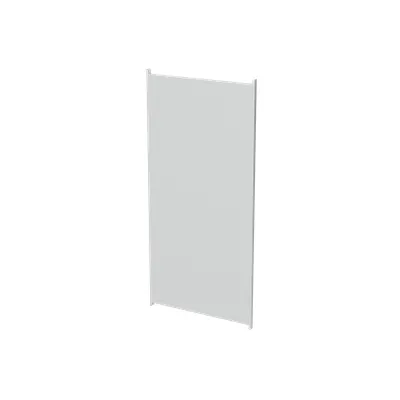

2CPX045916R9999 ABB: Mounting plate, 4FB, BH10, not installed, 2 mm steel sheet, zinc-plated, external dimensions: H x B in mm: 2030 x 996, suitable for TriLine row switching cabinets.
Suitable For
4/10R3|4/10R4|4/10R6|4/10R8|4/10RG3|4/10RG4|4/10RG6|4/10RG8
Enclosure Type
Mounting plate
Enclosure Type of Height
10
Surface Finishing
Galvanised
Material
Steel
Accessories Available
Yes
DIN Place Units
672
Meter Boards
0
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1000 mm
Product Net Height
2030 mm
Product Net Depth / Length
2 mm
Section Width
4
Product Net Weight
37.2 kg
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
38.688 kg
E-Number (Norway)
2405697
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
