2CPX045918R9999
Part Number: 2CPX045918R9999
Product Information
Extended Description

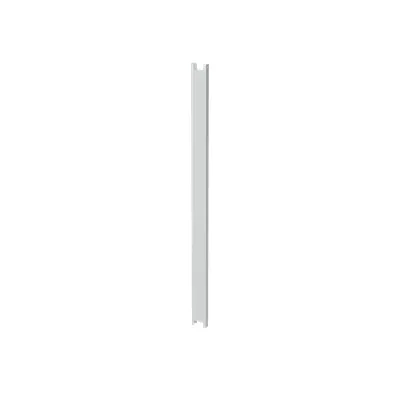

2CPX045918R9999 ABB: Intermediate part for mounting plates, overall height 8, for installing mounting plates over multiple stacked cabinets, dimensions: H x B in mm: 1730 x 113, suitable for TriLine® row switching cabinets.
Enclosure Type
Mounting plate
Enclosure Type of Height
8
Surface Finishing
Galvanised
Material
Steel
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
108 mm
Product Net Height
1730 mm
Product Net Depth / Length
2 mm
Product Net Weight
4.5 kg
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.68 kg
E-Number (Norway)
2405699
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
