2CPX045950R9999
Part Number: 2CPX045950R9999
Product Information
Extended Description

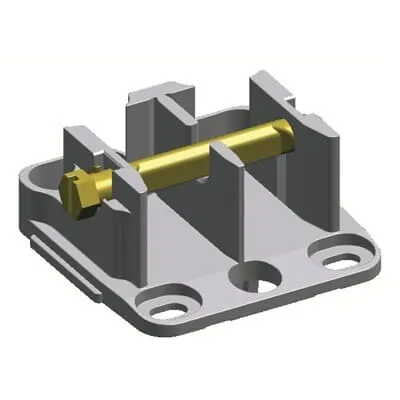

2CPX045950R9999 ABB: WR mounting frame bracket, needed for installing a mounting plate, a WR mounting frame or modules on a WR mounting frame. When installing two mounting plates, WR mounting frames or two WR mounting frames with modules next to each other (RZT WR RZT cross beam must be additionally ordered), suitable for TriLine® row switching cabinets.
Software Category
A
Sub-Function 3
Mounting bracket
Suitable For
Modular boards - System pro E Power
Enclosure Type
Enclosure accessories
Product Type
Holder
Accessories Available
No
DIN Place Units
0
Meter Boards
0
Remarks
ETIM
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Product Net Width
200 mm
Product Net Height
700 mm
Product Net Depth / Length
100 mm
Product Net Weight
1.065 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.065 kg
E-Number (Norway)
2405701
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction RZ1P4
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
