2CPX045960R9999
Part Number: 2CPX045960R9999
Product Information
Extended Description

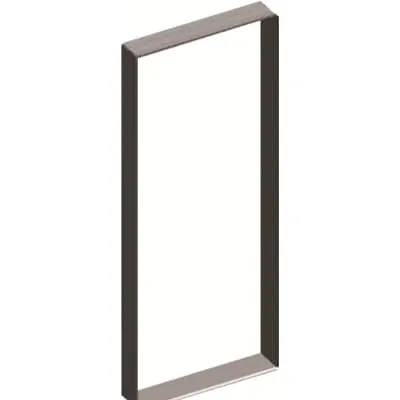

2CPX045960R9999 ABB: EDF assembly set, field width 5, necessary when installing with universal cross beams and profiles, for installation of distributor fields, combination kits, meter fields or modules on EDF mounting frames or WR mounting frames.
Sub-Function 3
other
Number of Panel Heights
0
Enclosure Type
Slide rails
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1250 mm
Product Net Height
2 mm
Product Net Depth / Length
85 mm
Section Width
5
Product Net Weight
4.036 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.197 kg
E-Number (Norway)
2405710
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction RNF
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
