2CPX045993R9999
Part Number: 2CPX045993R9999
Product Information
Extended Description

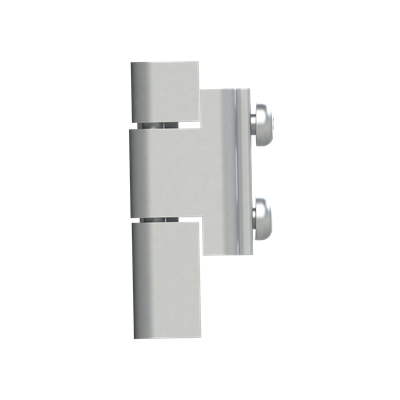

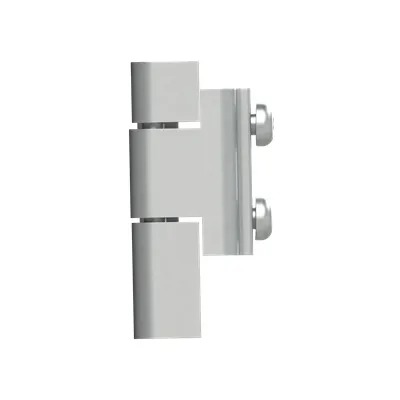

2CPX045993R9999 ABB: Hinge for standard doors, door opening angle 180°, with mounting material, when using ZH223, the door hinge must always be replaced for stacking; for cabinets with field widths of 4 and 5, RZ9P4 are needed twice, suitable for TriLine® row switching cabinets.
Sub-Function
180
Enclosure Type
Hinge
Surface Finishing
Anodised
Material
Aluminium
Accessories Available
No
DIN Place Units
0
Meter Boards
0
Remarks
ETIM
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2bab10dc-12c1-4f60-961f-78fb07873a53 Germany (DE)
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Product Net Width
44 mm
Product Net Height
59 mm
Product Net Depth / Length
24 mm
Product Net Weight
0.81 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.843 kg
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction 180°-hinge door
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001167 - Hinge for distribution systems
ETIM 9
EC001167 - Hinge for distribution systems
eClass
V11.1 : 27400643
Object Classification Code
U
