2CPX045997R9999
Part Number: 2CPX045997R9999
Product Information
Extended Description

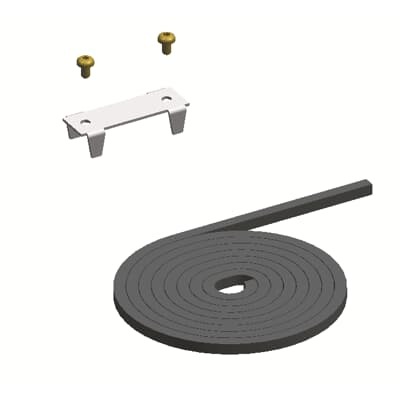

2CPX045997R9999 ABB: Connection set, IP40, for cabinet combination next to each other with sealing strip and sealing profile, suitable for TriLine switchgear cabinets
Sub-Function 3
Coupling set, side
Suitable For
1/10R3|1/10R4|1/10R6|1/10RG3|1/10RG4|1/10RG6|1/8R3|1/8R4|1/8R6|1/8RG3|1/8RG4|1/8RG6|2/10R3|2/10R4|2/10R6|2/10R8|2/10RG3|2/10RG4|2/10RG6|2/10RG8|2/8R3|2/8R4|2/8R6|2/8R8|2/8RG3|2/8RG4|2/8RG6|2/8RG8|3/10R3|3/10R4|3/10R6|3/10R8|3/10RG3|3/10RG4|3/10RG6|3/10RG8_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_༁
Model Number
Components for lace up technique
Accessory Type
coupler set
Enclosure Type
Cabinet connection
Material
Sheet steel / Plastic
Accessories Available
No
DIN Place Units
0
Meter Boards
0
Remarks
ETIM
Color
grey
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Product Net Width
260 mm
Product Net Height
90 mm
Product Net Depth / Length
330 mm
Product Net Weight
0.776 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.776 kg
E-Number (Norway)
2405437
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction RZ33 | Mounting instruction..RZ33 / RZ502-/-RZ504 / RZ505
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002622 - Components for arrangement / baying system (enclosure/cabinet)
ETIM 9
EC002622 - Components for arrangement/baying system (enclosure/cabinet)
eClass
V11.1 : 27182813
Object Classification Code
U
