2CPX046471R9999
Part Number: 2CPX046471R9999
Product Information
Extended Description

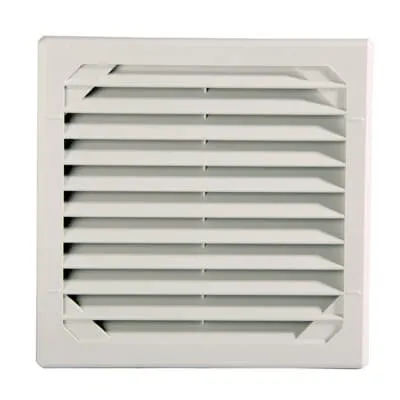

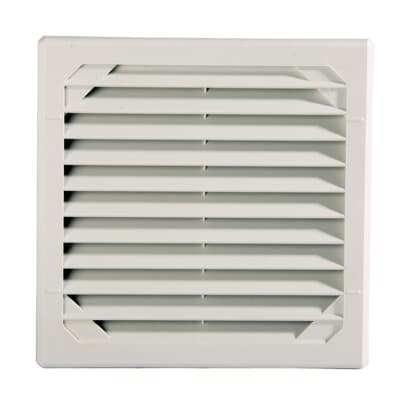

2CPX046471R9999 ABB: Exhaust filter, 130 x 130 mm, for RZF200 filter fans, exhaust filters are generally installed in combination with filter fans, preferably in the upper part of the switching cabinet, so that diagonal airflow is created, suitable for ventilating TriLine® row switching cabinets.
Sub-Function 3
other
Enclosure Type
RZA
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
130 mm
Product Net Height
130 mm
Product Net Depth / Length
24 mm
Product Net Weight
0.13 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.14 kg
E-Number (Norway)
2405756
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
