2CPX046475R9999
Part Number: 2CPX046475R9999
Product Information
Extended Description

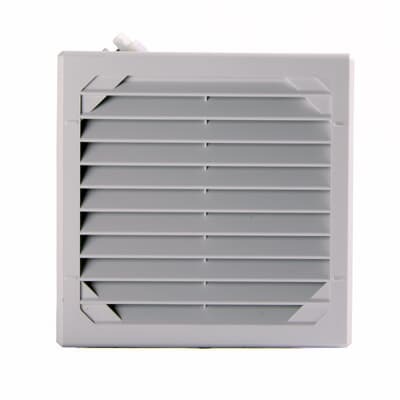

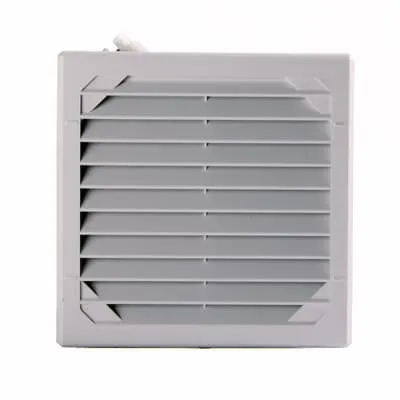

2CPX046475R9999 ABB: Filter fan, 19 W, 130 x 130 mm, airflow rate (free blowing) 25 m3/h, airflow rate with 1 exhaust filter RZA200 40 m3/h, suitable for ventilation of TriLine® row switching cabinets.
Sub-Function
Number of fan: 1
Sub-Function 3
Wall
Rated Operational Voltage
Maximum 230 V
Operational Voltage
50 Hz 230 V | 60 Hz 230 V
Input Voltage Type
AC
Normalized Volume Flow Rate
58
Number of Fans
1
Sound dB (A)
42 2N
Enclosure Type
RZF
Mounting Type
Screw mounting
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
130 mm
Product Net Height
130 mm
Product Net Depth / Length
72 mm
Product Net Weight
0.8 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.83 kg
E-Number (Norway)
2405760
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
ETIM 8
EC000320 - Ventilator (enclosure/cabinet)
ETIM 9
EC000320 - Ventilator (enclosure/cabinet)
eClass
V11.1 : 27180716
Object Classification Code
U
