2CPX046481R9999
Part Number: 2CPX046481R9999
Product Information
Extended Description

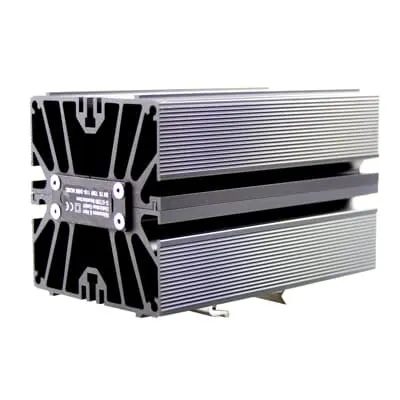

2CPX046481R9999 ABB: 75W PTC heating element, with terminal blocks, dimensions (L x W x H): 155 x 80 x 80 mm, for switching cabinet heating, suitable for TriLine® row switching cabinets.
Sub-Function 3
Heater
Sub-Function 4
75 W
Rated Operational Voltage
Maximum 230 V
Operational Voltage
50 Hz 110...240 V | 60 Hz 110...240 V
Nominal AC Voltage of the System (Uo)
230 V
Input Voltage Type
AC/DC
Enclosure Type
RZH
Product Type
Heater
Accessories Available
No
DIN Place Units
0
Meter Boards
0
Remarks
ETIM
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP00
Product Net Width
80 mm
Product Net Height
80 mm
Product Net Depth / Length
155 mm
Product Net Weight
1.02 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.06 kg
E-Number (Norway)
2405766
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
ETIM 8
EC000737 - Heating (enclosure/cabinet)
ETIM 9
EC000737 - Heating (enclosure/cabinet)
eClass
V11.1 : 27180710
Object Classification Code
U
