2CPX047146R9999
Part Number: 2CPX047146R9999
Product Information
Extended Description

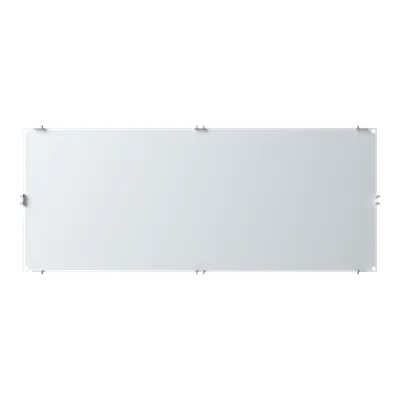

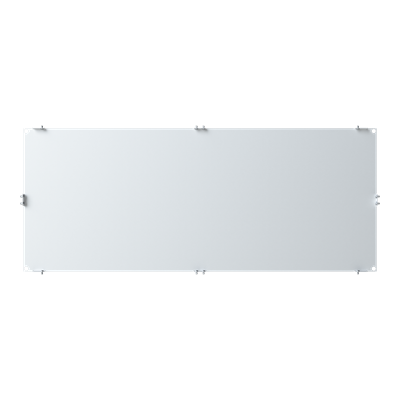

2CPX047146R9999 ABB: Bottom plate, series TriLine, assembly at enclosure frame attached, Galvanised, dimensions in mm (H x W x D): 27.5 x 1262 x 509, panel width 5, cabinet depth 6
Model Number
bottom plate
Enclosure Type
Bottom plate
Surface Finishing
Galvanised
Material
Steel
Accessories Available
No
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1262 mm
Product Net Height
27.5 mm
Product Net Depth / Length
509 mm
Section Width
5
Product Net Weight
7.947 kg
Dimension Diagram
Technical Drawing - TriLine C - Bottom Plate
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.265 kg
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction TriLine-C
ETIM 8
EC000744 - Top-/floor element (enclosure/cabinet)
ETIM 9
EC000744 - Top-/floor element (enclosure/cabinet)
Object Classification Code
U
