ABB 2CPX047183R9999 Power Distribution Panel - EN 61439
Part Number: 2CPX047183R9999
Quick Summary
ABB 2CPX047183R9999 power distribution panel enables N/PE busbar integration for centralized cabinet distribution in industrial automation. Many projects struggle with modularity, safe conductor routing, and maintenance downtime in tight spaces. DIN EN 61439-2/3 compliant, CE Declaration of Conformity, and RoHS/REACH commitments support regulatory alignment. With 72 DIN place units, 2-pole configuration, and a 1000 A rating, it supports scalable, safe power distribution. As part of the CombiLine interior fitting module family, it speeds installation while preserving traceability and compliance documentation. Designed for industrial cabinets and harsh environments, it provides predictable capacity and long-term cost savings.
Product Information
Extended Description

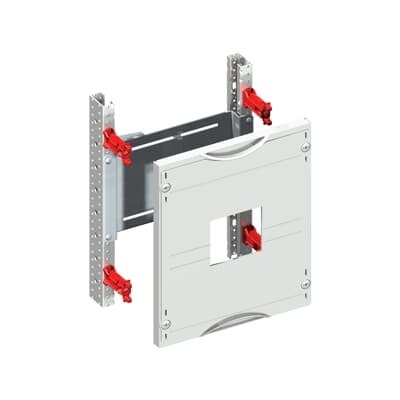

2CPX047183R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Accessories Available
Yes
DIN Place Units
72
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
1c40826b-7488-4eaa-b895-fb75c6d4b07a Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
300 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
2.047 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.129 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for N/PE busbars and terminals integrates into a 750 mm wide CombiLine panel, delivering a tidy, space-efficient wiring backbone. Business impact: reduces wiring complexity, speeds assembly, and improves fault isolation in crowded enclosures. Application: ideal for 2P configurations where horizontal busbar alignment and ZX563 holders enable quick, scalable upgrades. Feature: 72 DIN place units across a 750 mm width and 300 mm height. Business impact: maximizes circuit density without expanding cabinet footprint, lowering enclosure costs and material overhead. Application: suits modular distribution panels in medium-to-large industrial cabinets where future expansion is likely. Feature: Rated current up to 1000 A and maximum voltage of 400 V with support for up to two copper busbars. Business impact: supports high-load feeders while maintaining safety margins, enabling reliable motor control and power distribution. Application: main feeders for manufacturing lines and centralized feeders in control rooms and switchgear assemblies. Feature: Horizontal busbar alignment with ZX563 busbar holders, a plastic cover, and a 90-degree closure finished in RAL 7035. Business impact: simplifies installation, improves serviceability, and delivers a consistent cabinet appearance. Application: ideal during retrofits, expansions, or new builds where repeatable busbar layouts streamline commissioning. Feature: RoHS and REACH declarations, CE conformity, and SCIP/CMRT documentation accompany the unit. Business impact: reduces regulatory risk, eases supplier audits, and supports global procurement. Application: procurement and engineering teams requiring traceable environmental and compliance data for multinational projects.
Get a Quick Quote for a ABB 2CPX047183R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX047183R9999?
Enquire Now
FAQs
The unit uses an interior fitting module designed for N/PE busbars and terminals within a 750 mm wide CombiLine panel, featuring horizontal busbar alignment and ZX563 holders. It supports up to two copper busbars (busbars ordered separately) and offers 72 DIN positions for scalable circuit mapping, enabling straightforward retrofit or expansion in existing cabinets.
Key specs include a rated operational voltage up to 400 V, a rated current of 1000 A, and a 2P (two-pole) configuration. The enclosure accommodates 72 DIN place units across a 750 mm width and 300 mm height, with a maximum built-in depth of 400 mm and space for up to two Cu busbars, as supported by ZX563 holders.
Yes. It is designed as an interior fitting module in the CombiLine family, optimized for N/PE busbar and terminal installs in 2P configurations. Its 72 DIN places, 750×300 mm footprint, and horizontal busbar layout make it ideal for modular distributions, motor feeders, and scalable power sections in industrial control cabinets.
The unit is compliant with DIN EN 61439-2/3, carries CE declarations, and aligns with RoHS and REACH requirements, including CMRT and SCIP records. This compliance supports regulatory approvals, safer audits, and easier global procurement for multinational projects with strict environmental and safety standards.
The design emphasizes modularity and high-density routing, reducing wiring errors and installation time. With 72 DIN positions, high current capacity, and standardized components, the panel lowers enclosure costs, minimizes downtime during expansions, and provides predictable maintenance, ultimately delivering long-term cost savings and faster project timelines.
