2CPX052039R9999
Part Number: 2CPX052039R9999
Product Information
Extended Description

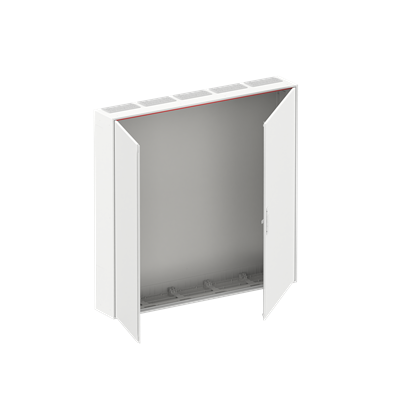

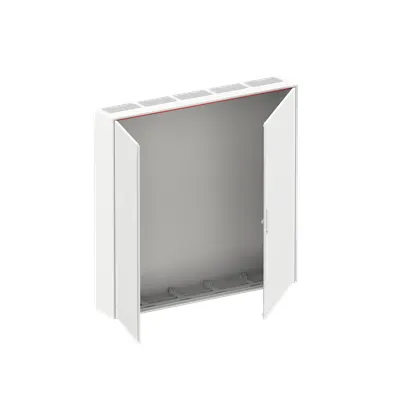

2CPX052039R9999 ABB: Wall-mounting cabinet, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP44, Impact strength IK07, rated current 250 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, door opening angle 120 degree, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 1250 x 1300 x 215, Grid unit 8 GU, panel width 5, Space units 480, pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Environmental Product Declaration - EPD
PEP ecopassport Product Environmental Profile A39 COMFORTLINE SWITCH CABINET (3PW9R)
Rated Current (In)
250 A
Power Loss
Δt = 20K 189.7 W | Δt = 25K 250.4 W | Δt = 30K 295.6 W
Number of Flange Openings
5
Number of Conduit Inlets
255
Number of Rows
8
Configuration Type
pre-assembled for installation of metering-, modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Cover Plate Type
Door
Enclosure Type
Wall-mounting cabinet
Mounting Type
Surface mounted/recessed mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
480
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
60
Product Net Width
1300 mm
Product Net Height
1250 mm
Product Net Depth / Length
215 mm
Section Width
5
Product Net Weight
38.481 kg
Built-In Depth (t2)
190 mm
Thickness
Cabinet Plate 0.9 mm | Door Plate 0.9 mm
Dimension Diagram
Technical Drawing - ComfortLine A | Technical Drawing - ComfortLine A
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
40.02 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction ComfortLine Cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
