2CPX052222R9999
Part Number: 2CPX052222R9999
Product Information
Extended Description

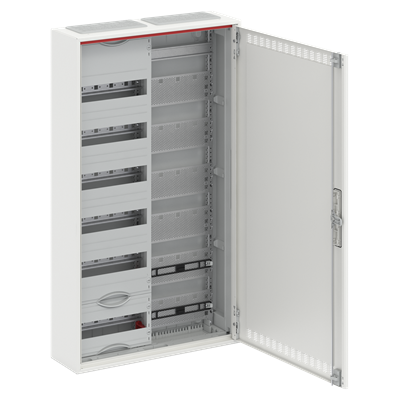

2CPX052222R9999 ABB: Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, ventilated metal door wifi, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 950 x 550 x 160, Grid unit 6 GU, panel width 2, Space units 72, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with distribution module + multimedia module, device support removable
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
125 A
Power Loss
Δt = 20K 69.3 W | Δt = 25K 91.5 W | Δt = 30K 114.8 W
Number of Rows
6
Closure Type
Turn Handle
Configuration Type
Assembled with distribution module + multimedia module
Cover Plate Type
Door
Enclosure Type
Compact distribution board
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
72
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type CA
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
950 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
18.416 kg
Built-In Depth (t2)
0 mm
Dimension Diagram
ComfortLine CA - Technical Drawing
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
19.153 kg
E-Number (Norway)
2414632
E-Number (Sweden)
2300484
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type CA
Instructions and Manuals
Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
Building Information Modeling – BIM
ABB - BIM - Compact Distribution Board - ComfortLine Compact CA | ABB - BIM - Compact Distribution Board - ComfortLine Compact CA
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN EN 61439-3
