2CPX052285R9999
Part Number: 2CPX052285R9999
Product Information
Extended Description

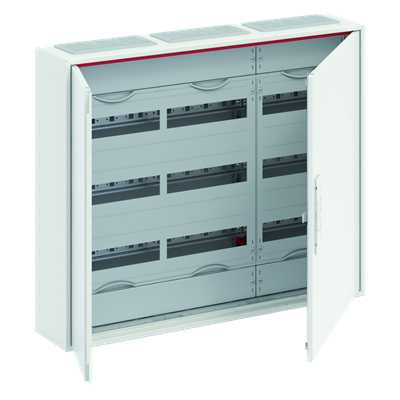

2CPX052285R9999 ABB: Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right and left, cable entry on top via pre-punched, on bottom via pre-punched, dimensions in mm (H x W x D): 650 x 800 x 160, Grid unit 4 GU, panel width 3, Space units 108, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE screw terminal, cable fastening rail integrated, Assembled with distribution module, device support removable
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
125 A
Power Loss
Δt = 20K 74.2 W | Δt = 25K 97.9 W | Δt = 30K 122.8 W
Number of Rows
3
Closure Type
Turn Handle
Configuration Type
Assembled with distribution module
Cover Plate Type
Door
Enclosure Type
Compact distribution board
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type CA
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
36
Product Net Width
800 mm
Product Net Height
650 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
20.811 kg
Built-In Depth (t2)
0 mm
Dimension Diagram
ComfortLine CA - Technical Drawing
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.643 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type CA
Instructions and Manuals
Mounting instruction ZK...B ZK...G | Mounting instruction ZKS..B / ZKS..G | Mounting instruction ComfortLine Cabinet
Building Information Modeling – BIM
ABB - BIM - Compact Distribution Board - ComfortLine Compact CA - Ireland
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Standards
DIN EN 61439-3
