2CPX052456R9999
Part Number: 2CPX052456R9999
Product Information
Extended Description

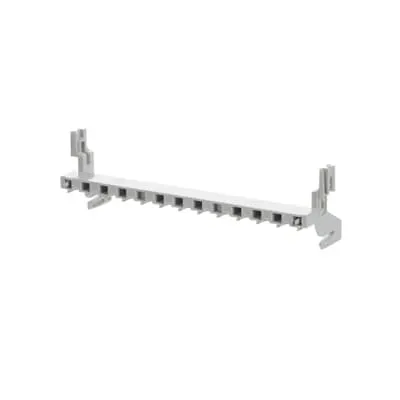

2CPX052456R9999 ABB: Quick plug-in carrier for compact distribution board for mounting N/PE quick plug-in terminals, tool-free mounting through simple plugging; useful width for the quick plug-in terminals is 214 mm. The system complies with the current DIN VDE 0100 Part 410 standard, and is highly flexible with respect to the size of the terminals and extensibility. The modularity and the extensive range make it possible for you to configure the products exactly to your practical needs. Various quick plug-in terminals can be combined on a shared quick plug-in carrier as necessary.
Accessory Type
terminal carrier
Enclosure Type
Terminal carrier
Material
Plastic
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type CA
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Product Net Width
205.5 mm
Product Net Height
20 mm
Product Net Depth / Length
15 mm
Product Net Weight
0.058 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.06 kg
E-Number (Norway)
2405688
E-Number (Sweden)
2300522
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type CA
Instructions and Manuals
Mounting instruction ZK...B ZK...G | Mounting instruction Installation of N / PE distribution panel, front
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
