2CPX052469R9999
Part Number: 2CPX052469R9999
Product Information
Extended Description

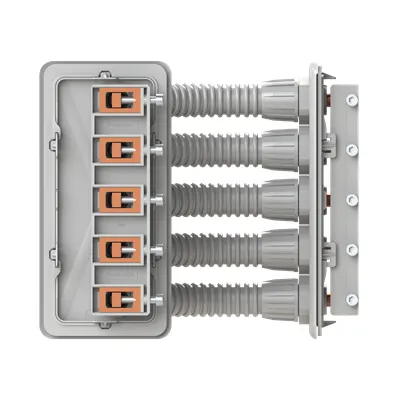

2CPX052469R9999 ABB: Busbar corner connector, for connecting Cu bars between two cabinets over a corner, with insulating frame and incl. mounting material, 1 5-pole set, 315 A, for Cu 2 x 12 x 10 mm, suitable for ComfortLine A cabinets.
Rated Current (In)
315 A
Number of Poles
5P
Connection Type
Cabinet / Cabinet
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b488e4c3-1d3e-4c17-a71d-2938bb4e996e Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
350 mm
Product Net Height
223 mm
Product Net Depth / Length
106 mm
Product Net Weight
3.169 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.296 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction CZC8 CZC18
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
