2CPX052478R9999
Part Number: 2CPX052478R9999
Product Information
Extended Description

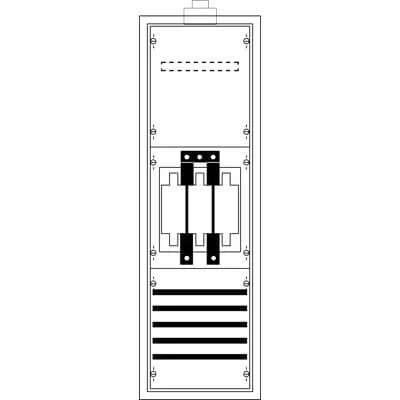

2CPX052478R9999 ABB: Incoming cabinet, completely assembled cabinet, mounting options: lateral, net-side connection compartment meter space with busbars, prepared for NH2 fuse elements, dimensions in mm (H x W x D): 950 x 300 x 215
Rated Operational Voltage
Maximum 415 V
Operational Voltage
400 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Feed-in enclosure
Enclosure Type of Height
2
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Material
Sheet steel / Plastic
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
bf59e295-14af-4fa9-82ad-2f10302f6558 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Product Net Width
300 mm
Product Net Height
950 mm
Product Net Depth / Length
215 mm
Section Width
1
Product Net Weight
21.177 kg
Built-In Depth (t2)
190 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
22.024 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction CZC4-CZC14 | Mounting instruction CZE 30/31/32
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000268 - Cable entry cabinet
ETIM 9
EC000268 - Cable entry cabinet
eClass
V11.0 : 27142422
Object Classification Code
U
