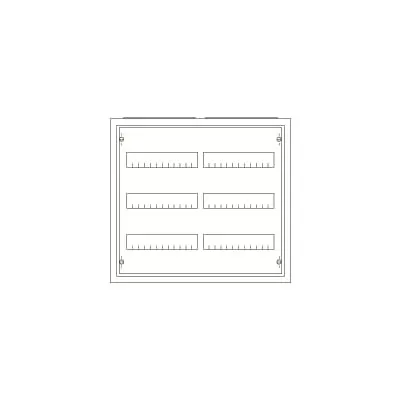

ABB 2CPX052548R9999 Wall-Mount Cabinet - IP44
Part Number: 2CPX052548R9999
Quick Summary
ABB 2CPX052548R9999 wall-mount cabinet provides a durable enclosure for electrical control gear in industrial panels. This solution addresses the common pain point of protecting sensitive electronics from dust, moisture, and wiring misalignment in tight control rooms. With IP44 protection and Class II isolation, CE conformity, RoHS, and REACH compliance, this cabinet meets stringent safety and environmental standards. By offering surface mounting with a 72-module DIN rail layout and 500 x 550 x 215 mm footprint, it reduces installation time, simplifies wiring, and lowers lifecycle costs for panel builders and OEMs. Optional accessories and easy-to-service door design further improve maintenance efficiency and uptime.
Product Information
Extended Description
2CPX052548R9999 ABB: Complete Cabinet France, ComfortLine A23, protection class II (double insulated), dimensions in mm (H x W x D): 500 x 550 x 215, 3GU, 2PW
Rated Current (In)
250 A
Number of Flange Openings
2
Model Number
1-story
Number of Conduit Inlets
102
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
3
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Closure Type
Turn Handle
Cover Plate Type
Door
Enclosure Type
Wall-mounting cabinet
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Cover Style
with Notch
DIN Place Units
72
RAL Number
RAL 9016 - Traffic White
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
500 mm
Product Net Depth / Length
215 mm
Product Net Weight
12.415 kg
Built-In Depth (t2)
190 mm
Thickness
Cabinet Plate 0.9 mm | Door Plate 0.9 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.912 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction ZK...B ZK...G | Mounting instruction ComfortLine Cabinet
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: IP44 protection and Isolated Class II design deliver safe, reliable operation in dirty or damp environments, reducing risk of electrical faults and downtime in factory automation panels. This enables compliant deployments in machinery and process control where safety and reliability are non-negotiable. Feature → Business Impact → Application: 72 DIN placement units across 3 rows provide high-density enclosure capacity, supporting scalable automation architectures and future expansion without new enclosures. Ideal for compact control cabinets in on-site machine builders and OEM automation loops. Feature → Business Impact → Application: Lower Connection Space with DIN Rails and 102 conduit inlets streamline wiring, improve cabling organization, and shorten installation time on the shop floor. Beneficial for electrical contractors and systems integrators responsible for rapid panel commissioning. Feature → Business Impact → Application: Powder-coated steel/plastic housing in RAL 9016 delivers a durable, easy-to-clean finish resistant to corrosion and wear, reducing maintenance costs and improving lifecycle performance in harsh environments. Feature → Business Impact → Application: Compliance features including CE declarations, RoHS and REACH information, plus WEEE categorization support regulatory adherence and safe end-of-life handling for panel builders and end users. Feature → Business Impact → Application: Surface-mounting compatibility and a built-in depth of 190 mm optimize real estate use and facilitate retrofit projects, enabling quicker integration with existing ABB ComfortLine systems and compatible components.
Get a Quick Quote for a ABB 2CPX052548R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX052548R9999?
Enquire Now
FAQs
This cabinet is designed for surface mounting with a 500x550x215 mm footprint, 72 DIN rail units across 3 rows, and a built-in lower connection space that accommodates DIN rails. It also offers two flange openings for secure mounting and straightforward conduit management, simplifying panel assembly and future expansions.
Yes. It carries IP44 protection and Class II isolation, protecting internal components from dust and moisture while ensuring double insulation. It conforms to CE, RoHS, and REACH requirements, and is aligned with WEEE categorization for responsible end-of-life handling.
The lower connection space supports DIN Rails (Top Hat rails), enabling organized and accessible wiring within the enclosure. With 102 conduit inlets and 72 DIN place units, installers can route power and control cables efficiently, reducing panel complexity and improving serviceability.
Ideal for factory automation, machine control panels, and switchgear housings in manufacturing and process industries. Its robust finish, modular DIN layout, and safety certifications make it suitable for OEM build-outs, machine builders, and system integrators seeking reliable, scalable enclosures.
The powder-coated steel/plastic housing offers long-lasting durability and easier cleaning, reducing maintenance costs. The 72 RU capacity supports long-term expansion without new enclosures. CE, RoHS, and REACH compliance minimize compliance risk, while the accessible door and mounting design help maximize uptime and return on investment.
