2CPX052557R9999
Part Number: 2CPX052557R9999
Product Information
Extended Description

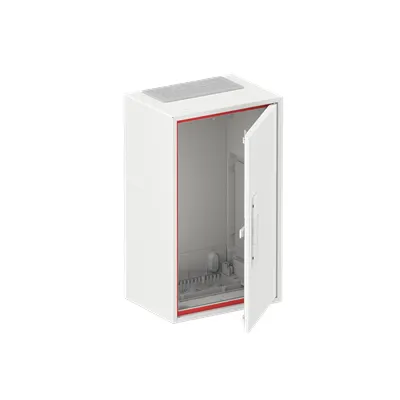

2CPX052557R9999 ABB: Wall-mounting cabinet, class of protection II (double insulated), degree of protection IP54, Impact strength IK07, rated current 250 A, Powder-coated, in RAL WEISS, enclosure out of Sheet steel / Plastic, single-leaf door, dimensions in mm (H x W x D): 500 x 300 x 215, Space units 36
Rated Current (In)
250 A
Number of Flange Openings
1
Number of Conduit Inlets
51
Number of Rows
3
Closure Type
Turn Handle
Cover Plate Type
Door
Enclosure Type
Wall-mounting cabinet
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
36
RAL Number
RAL 9016 - Traffic White
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
300 mm
Product Net Height
500 mm
Product Net Depth / Length
215 mm
Product Net Weight
6.854 kg
Built-In Depth (t2)
190 mm
Thickness
Cabinet Plate 0.9 mm | Door Plate 0.9 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.128 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction ComfortLine Cabinet
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
