2CPX052566R9999
Part Number: 2CPX052566R9999
Product Information
Extended Description

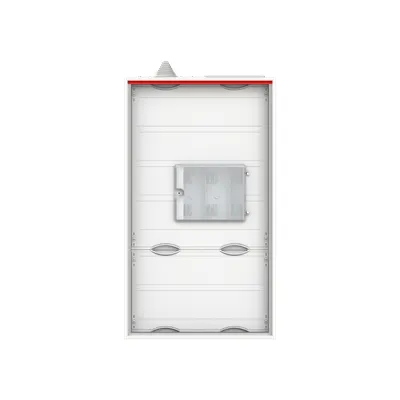

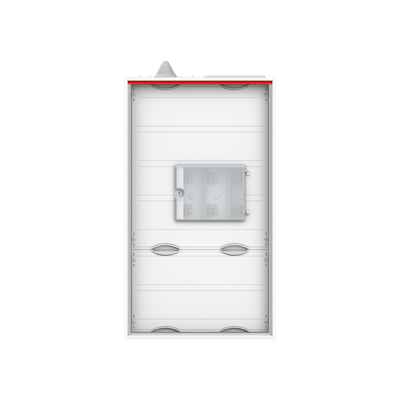

2CPX052566R9999 ABB: House connection cabinet, completely assembled cabinet, applicable standards: EN 61439-1, VDE 0660-600-1,dimensions in mm (H x W x D): 950 x 550 x 215
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Feed-in enclosure
Enclosure Type of Height
2
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Material
Sheet steel / Plastic
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
956e0a21-ef84-4d5b-a02f-7edc4ae4b4ea Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Protection Class
Isolated (Class II)
Product Net Width
550 mm
Product Net Height
950 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
35.002 kg
Built-In Depth (t2)
190 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
36.402 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000268 - Cable entry cabinet
ETIM 9
EC000268 - Cable entry cabinet
Object Classification Code
U
