2CPX052661R9999
Part Number: 2CPX052661R9999
Product Information
Extended Description

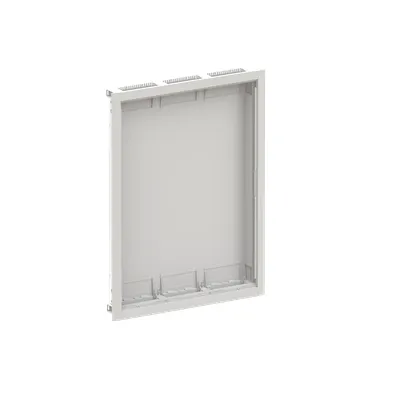

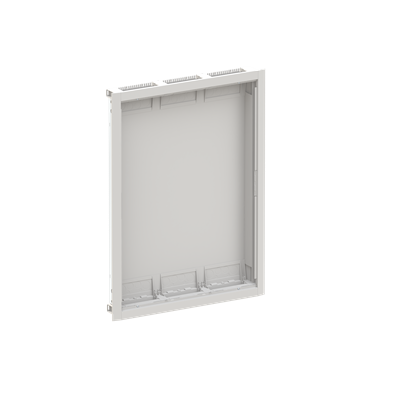

2CPX052661R9999 ABB: Compact distribution board, series ComfortLine, empty cabinet, for the internal use, With picture frame without door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, without door, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, dimensions in mm (H x W x D): 1164 x 865 x 125, Shutter frame dimensions in mm (H x W x D): 1164 x 865 x 15, 15 mm, possible plaster compensation up to 25 mm, Grid unit 7 GU, panel width 3, Space units 252, without N/PE Quick-terminal, cable fastening rail integrated, pre-assembled for installation of modules and CombiLine Modules
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
125 A
Power Loss
Δt = 20K 82.1 W | Δt = 25K 108.4 W | Δt = 30K 136 W
Number of Rows
77
Configuration Type
pre-assembled for installation of modules and CombiLine Modules
Cover Plate Type
optional
Enclosure Type
Compact distribution board
Mounting Type
Flush mounting
Door Type
Without Door
Surface Finishing
Powder-coated
Housing Material
Steel
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
252
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type CU
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
36
Product Net Width
865 mm
Product Net Height
1164 mm
Product Net Depth / Length
125 mm
Section Width
3
Product Net Weight
16.21 kg
Built-In Depth (t2)
110 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.858 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type CU
Instructions and Manuals
Mounting instruction CU...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
Object Classification Code
U
Standards
DIN EN 61439-3
