2CPX054016R9999
Part Number: 2CPX054016R9999
Product Information
Extended Description

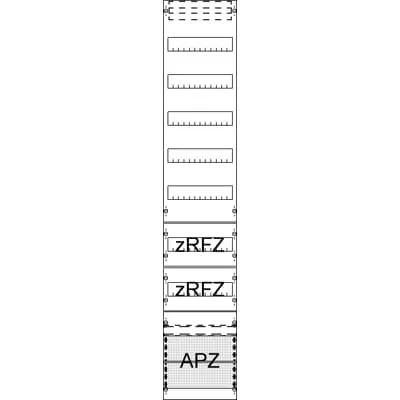

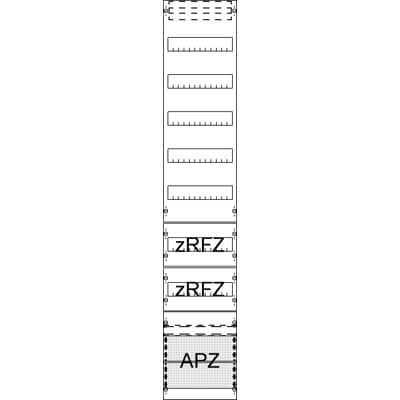

2CPX054016R9999 ABB: Distribution panel, suitable for series: ComfortLine, empty board, for DIN rail mounting devices, dimensions in mm (H x W x D): 1350 x 250 x 160, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
12
Number of Rows
5
Cover Plate Type
With notch
Enclosure Type
Distribution panel
Enclosure Type of Height
5
Accessories Available
Yes
DIN Place Units
108
Module Function
DIN rail mounting devices
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.698 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.966 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction FVxxAx FVxxS/Ax/Rx
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
