2CPX054026R9999
Part Number: 2CPX054026R9999
Product Information
Extended Description

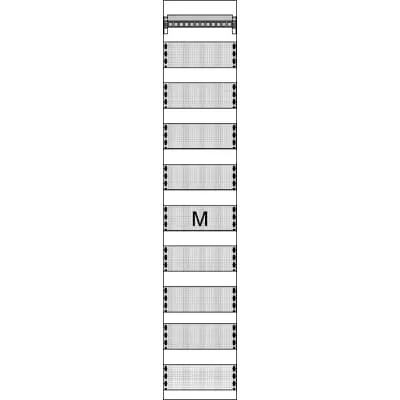

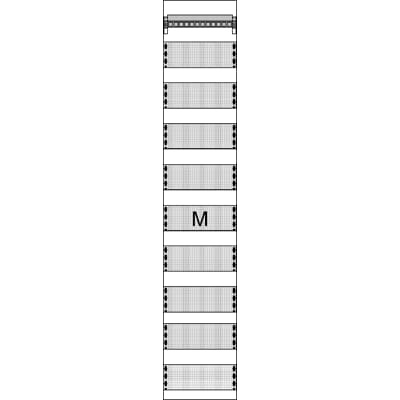

2CPX054026R9999 ABB: Media Panel, suitable for series: ComfortLine, for Media board with perforated sheet steel mounting plate, dimensions in mm (H x W x D): 1350 x 250 x 160, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, without N/PE
Number of DIN Rails for Mounting
1
Number of Modular Spacings per DIN Rail
12
Number of Rows
0
Enclosure Type
Media Panel
Enclosure Type of Height
5
Accessories Available
Yes
DIN Place Units
108
Module Function
Media board with perforated sheet steel mounting plate
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
5.315 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.528 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction FM17_19_27_29 Media Panel
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002574 - Built-in field for telecommunications
ETIM 9
EC002574 - Built-in field for telecommunications
eClass
V11.0 : 27142416
Object Classification Code
U
