2CPX054057R9999
Part Number: 2CPX054057R9999
Product Information
Extended Description

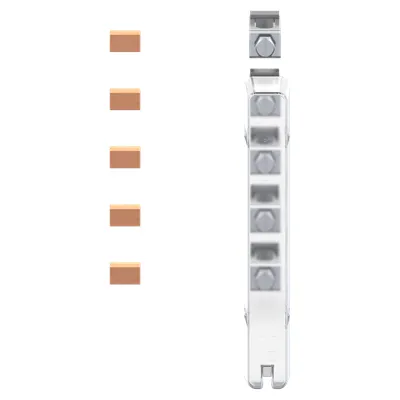

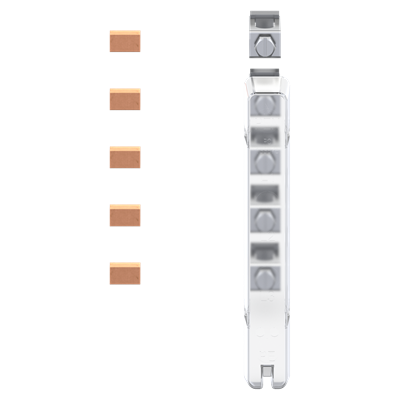

2CPX054057R9999 ABB: Busbar connector for meter and distribution panels, 5-pole, 355A, for Cu 12 x 10 mm
Rated Current (In)
355 A
Number of Poles
5P
Connection Type
Field / Field
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
31 mm
Product Net Height
205.5 mm
Product Net Depth / Length
75 mm
Product Net Weight
0.383 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.398 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction ZCV25_ZCV35
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
