2CPX054194R9999
Part Number: 2CPX054194R9999
Product Information
Extended Description

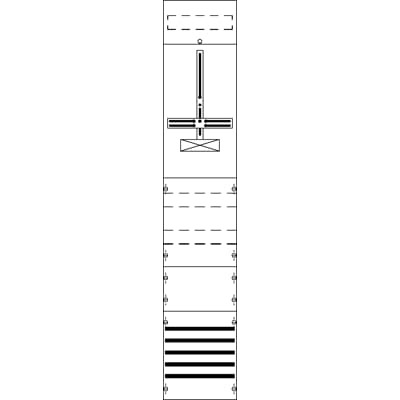

2CPX054194R9999 ABB: Meter panel, series ComfortLine, suitable for series: ComfortLine, empty board, with Metering cross, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, not pre-wired, net side compartment, meter space: with busbar, with-out, Number of reserve spaces 1, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Current (In)
63 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
5
Protection Type
None
Accessories Available
Yes
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2c4353d2-e82e-4c51-989b-3288f7310c0b Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.555 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.817 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction BFxx_DFxx
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
