2CPX054242R9999

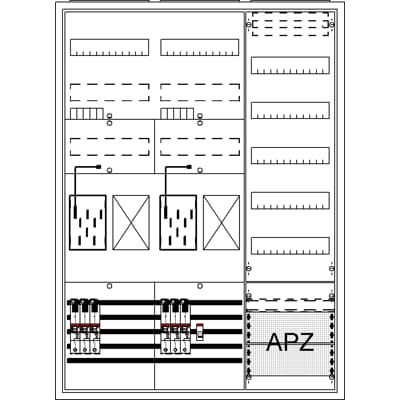

2CPX054242R9999 ABB: Meter board, series ComfortLine A, fully assembled cabinet, with BKE-I, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: DIN VDE 0603-2-1, VDE AR-N 4100:2019-04, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right and left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, incl. Data sensor 500 mm, net side compartment, meter space: with busbar, with 2x selective main circuit breaker E50A 3polig, incoming terminals up to 25 mm², system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 2, Number of reserve spaces 2, Number of distributor rows 5, Grid unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, RAL 7035
