2CPX054298R9999
Part Number: 2CPX054298R9999
Product Information
Extended Description

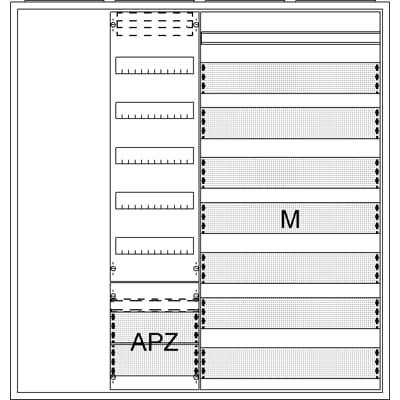

2CPX054298R9999 ABB: Meter expansion cabinet, series ComfortLine A, without meter panel, free panel width: 1, with distribution panel FV17A2, with media panel FM27, universally usable throughout Germany, meter panel selection is made by the customer according to regional conditions, mounting type: wall-mounted, partially recessed, flush-mounted (with trim frame), for indoor use in residential, functional and industrial buildings, cable entry on top via membrane flange mounted, on bottom via 1x cable entry flange enclosed, on side via flange opening embossed, rear wall via cable entry embossed, dimensions in mm (H x W x D): 1100 x 1050 x 215, housing made of sheet steel, double door made of sheet steel, with standard lock, door opening angle 120 degrees, rear wall made of sheet steel / plastic, protection class IP44 (IP31 according to DIN VDE 0603-1), IK code 07, applicable standards: DIN VDE 0603-1, DIN 43870-1, color: white RAL 9016, powder coated, included in delivery: 5x busbar connection terminal (ZK79).
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
63 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
57
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter board
Enclosure Type of Height
3
Mounting Type
Surface mounted/recessed mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
DIN Place Units
336
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Product Net Width
1050 mm
Product Net Height
1100 mm
Product Net Depth / Length
215 mm
Section Width
4
Product Net Weight
38.889 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
40.445 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction AAxx
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
