2CPX054319R9999
Part Number: 2CPX054319R9999
Product Information
Extended Description

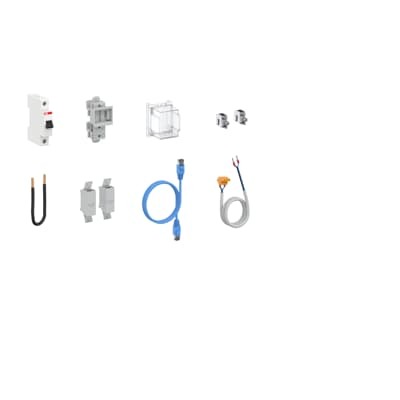

2CPX054319R9999 ABB: Equipment set for power supply and communication (iMSys). Cable length suitable for use in the 7GU expansion cabinet. Included in delivery: 1x overcurrent protection device MCB B10A 25kA 1-pole, 1x device carrier (ZB3) for busbar mounting, 1x sealing cap (ZPH20) for overcurrent protection device, 1x input wiring for overcurrent protection device, 2x busbar connection terminal 16mm² for N conductor and input wiring for overcurrent protection device, 1x power supply cable 2-pole (L+N) for RfZ, one-sided with female connector, 1x patch cable 1500mm (ZLPBL150), 2x RJ45 double socket (ZED45U)
Number of Poles
2P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1500 mm
Product Net Height
1500 mm
Product Net Depth / Length
1500 mm
Product Net Weight
0.518 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.539 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAMxx
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
