2CPX054326R9999
Part Number: 2CPX054326R9999
Product Information
Extended Description

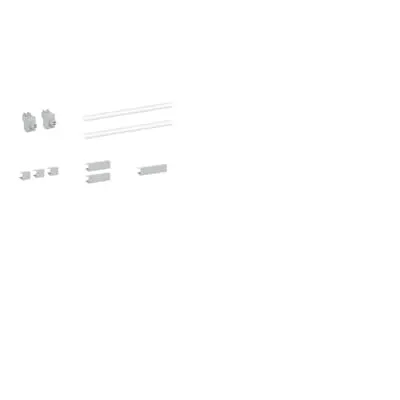

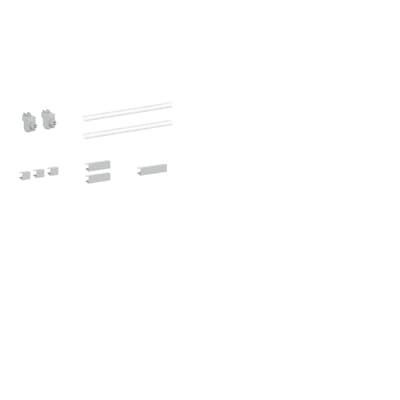

2CPX054326R9999 ABB: Equipment set for the use of standard panels in the TT system. This equipment set can be used to insulate the PE busbars, the PE busbar connection terminals and the PE conductors behind the busbar by means of insulating profiles. The equipment set is universally suitable for 1 and 2 meter places per panel width.Included in delivery:3x busbar insulation profile 17mm,2x busbar insulation profile 46mm,1x busbar insulation profile 56mm,2x busbar terminal insulation profile for ZK79 (16mm²),2x insulating tube for PE conductor 330mm
Number of Poles
1P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
330 mm
Product Net Height
330 mm
Product Net Depth / Length
330 mm
Product Net Weight
0.059 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.061 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAZTTxx
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
