2CPX054332R9999
Part Number: 2CPX054332R9999
Product Information
Extended Description

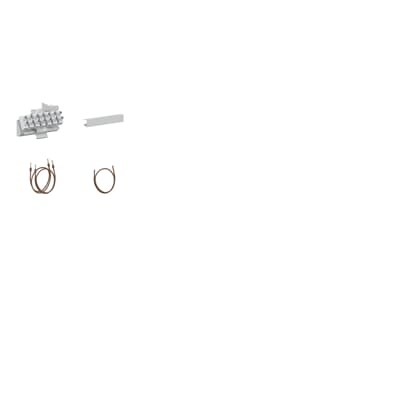

2CPX054332R9999 ABB: Equipment set for equipping a 1-panel wide meter panel with up to 2 meter places with control wiring for tariff control. Cable lengths universal suitable for 7GU and 9GU.Included in delivery: 1x control line terminal, screwable, 7-pole, incl. holder (ZK72H),1x busbar cover profile 80mm,1x connecting cable 1,5mm², brown, from control cable terminal to control cable terminal,2x connecting cable 1,5mm², brown, from control cable terminal to meter, one or two storey
Number of Poles
2P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
727a4f42-6135-4448-a438-778dff3eda0b Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
980 mm
Product Net Height
980 mm
Product Net Depth / Length
980 mm
Product Net Weight
0.175 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.182 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAVN
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
