2CPX054334R9999
Part Number: 2CPX054334R9999
Product Information
Extended Description

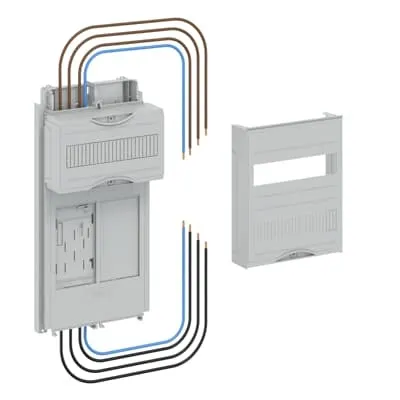

2CPX054334R9999 ABB: Equipment set for converting a meter place with three-point fixing into a BKE-I meter place with a meter place wiring of 10mm². Cable lengths universal suitable for standard BKE-I meter place 7RE for reference or surplus feed-in.Included in delivery:1x meter plate eHZ 450mm,1x Cover eHZ-BKE-I,1x device carrier RfZ 150mm,1x Cover RfZ 150mm,1x Fastening and contacting unit BKE-I, 10mm², with seamless N, surplus feed-in,1x Cover AAR 300mm BKE-I
Number of Poles
4P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
450 mm
Product Net Weight
2.27 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.361 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZBMxxx
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
