2CPX054339R9999
Part Number: 2CPX054339R9999
Product Information
Extended Description

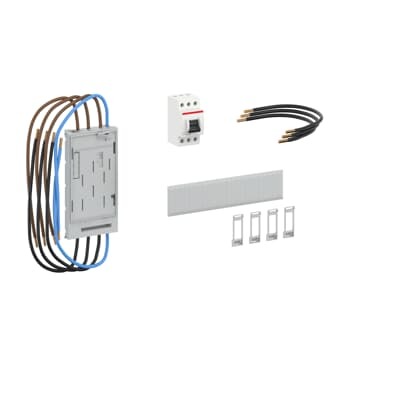

2CPX054339R9999 ABB: Equipment set for converting a BKE-I meter place for use as a surplus feed-in (continuous current 32A). The conversion is done by replacing the existing BKE-I. Cable lengths suitable for standard BKE-I meter place 7GU. The disconnecting device (circuit breaker for self-generation) can be positioned in the AAR.Included in delivery:1x fastening and contacting unit BKE-I, 10mm², with long input lines and with seamless N, 1x circuit breaker E463/3KB, 3-pole, 63A,3x connection cable 10mm², black (L1-L3) from circuit breaker to main line terminal,1x slot cover lockable (ZA235), RAL 7035
Number of Poles
4P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
810 mm
Product Net Height
810 mm
Product Net Depth / Length
810 mm
Product Net Weight
1.112 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.156 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAB1xE
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
