2CPX054340R9999
Part Number: 2CPX054340R9999
Product Information
Extended Description

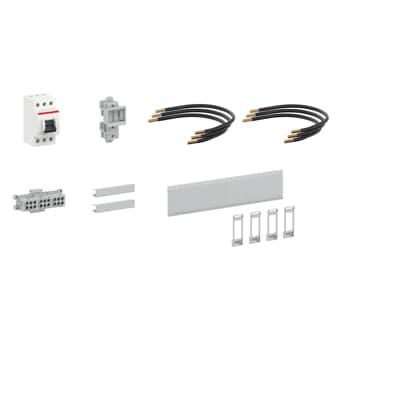

2CPX054340R9999 ABB: Equipment set for converting a meter place with the wiring 16mm² for use as a surplus feed-in (continuous current 44A). The conversion is done by means of 'line extension (BKE-I) or line replacement (three-point fixing)'. Cable lengths suitable for standard BKE-I / three-point fixing meter place 7GU and three-point fixing meter place 9GU meter place above. The disconnecting device (circuit breaker for self-generation) can be positioned in the NAR or AAR. For two-storey meter places, only one meter panel can be used per panel width according to VDE-AR-N 4100. Included in delivery:1x circuit breaker E463/3KB, 3-pole, 63A,1x main line terminal 3-pole, 25/16mm² (ZK416),3x meter input line 16mm², black (L1-L3),3x connection cable 16mm², black (L1-L3) from circuit breaker to main line terminal,1x device carrier (ZB3) for busbar mounting,2x busbar insulation profile 80mm,1x slot cover lockable (ZA235), RAL 7035
Number of Poles
3P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
cf6af518-11ca-43ce-8bcb-0329680d1962 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
950 mm
Product Net Height
950 mm
Product Net Depth / Length
950 mm
Product Net Weight
1.099 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.143 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAZ1xE
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
