2CPX054341R9999
Part Number: 2CPX054341R9999
Product Information
Extended Description

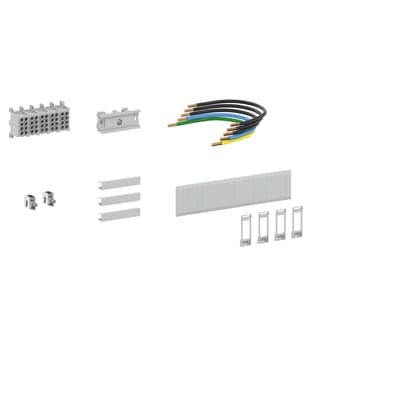

2CPX054341R9999 ABB: Equipment set for converting a meter place for use as a tenant power model / self-supply community (2nd busbar system).The conversion is done by means of ""line extension"". Cable lengths suitable for 7GU and 9GU.Included in delivery:1x device carrier (ZX100) for busbar mounting,1x main line terminal 5-pole, 25/16mm² (ZHK255),3x connection cable 10mm², black (L1-L3) from main line terminal to selective main circuit breaker,2x busbar connection terminal 16mm² for N-/PE-conductor,3x busbar insulation profile 80mm,1x slot cover lockable (ZA235), RAL 7035
Number of Poles
5P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
c3546129-8e1a-4e54-9948-c96e8cbdf942 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
750 mm
Product Net Weight
1.163 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.21 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZAZxxxS2
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
