2CPX054342R9999
Part Number: 2CPX054342R9999
Product Information
Extended Description

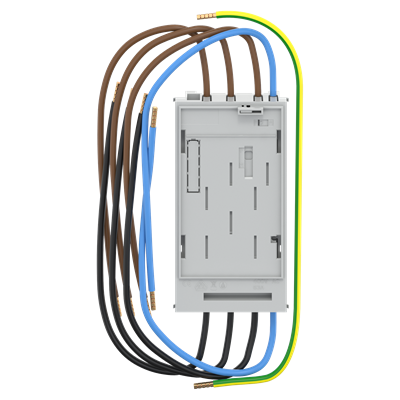

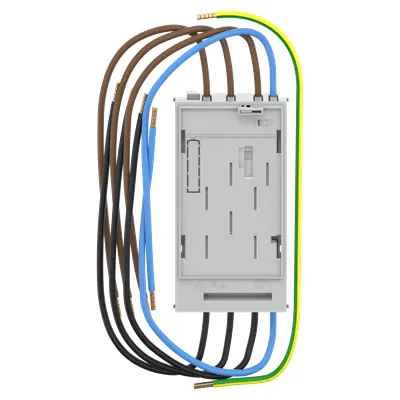

2CPX054342R9999 ABB: Fastening and contacting unit (BKE-I) for use as surplus feed-in according to EEG, rated current up to 63A, continuous current up to 32A. Cable lengths suitable for standard BKE-I meter place 7GU. Included in delivery:1x fastening and contacting unit BKE-I 4-pole, 10mm², with long input cables and seamless N,1x PE cable green/yellow 10mm², from NAR busbars to AAR main line terminal
Number of Poles
5P
Enclosure Type
Conversion kit
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
105 mm
Product Net Height
140 mm
Product Net Depth / Length
44 mm
Product Net Weight
0.968 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.007 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZBBxx_ZMBxx
ETIM 8
EC000274 - Connection cable tree for distribution boards
ETIM 9
EC000274 - Connection cable tree for distribution boards
eClass
V11.0 : 27142428
Object Classification Code
U
