2CPX054351R9999
Part Number: 2CPX054351R9999
Product Information
Extended Description

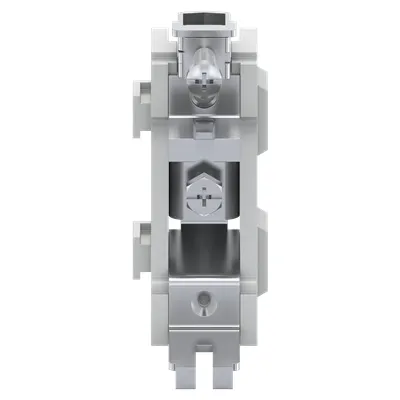

2CPX054351R9999 ABB: NH00 element 1-pole, 1 x 100 A, single outlet, frame terminals, without partitions
Rated Current (In)
160 A
Number of Poles
1P
Connection Type
Screw Clamp
Enclosure Type
Protective devices
Mounting Type
Other
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
37.5 mm
Product Net Height
96.5 mm
Product Net Depth / Length
80 mm
Product Net Weight
0.159 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.165 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000067 - Low Voltage HRC fuse base
ETIM 9
EC000067 - Low Voltage HRC fuse base
eClass
V11.0 : 27142106
Object Classification Code
U
