2CPX054426R9999
Part Number: 2CPX054426R9999
Product Information
Extended Description

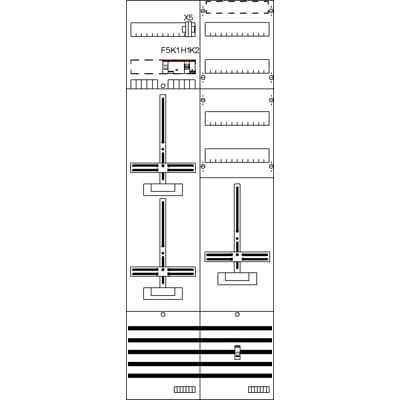

2CPX054426R9999 ABB: Meter panel, series ComfortLine, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, degree of protection IP2XC, applicable standards: VDE AR-N 4100:2019-04, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, with-out, net side compartment, SG space: with Miniature circuit breaker 1-pole B10/25kA according DIN VDE 0660-101 sealable, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 2, Number of SG spaces 1, Number of distributor rows 2, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Current (In)
63 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
2
Number of Rows
2
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
240ae2bc-b687-4cf7-bcd4-6c806fab72f5 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
15.945 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.583 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
