2CPX054471R9999
Part Number: 2CPX054471R9999
Product Information
Extended Description

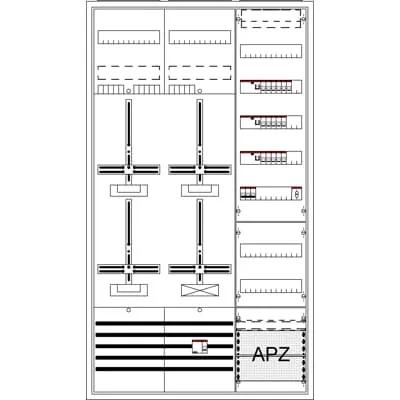

2CPX054471R9999 ABB: Meter board, series ComfortLine A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: DIN VDE 0603-2-1, VDE AR-N 4100:2019-04, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right and left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1400 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 25 mm², system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 3, Number of SG spaces 1, Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
63 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
3
Number of Rows
7
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter board
Enclosure Type of Height
5
Mounting Type
Surface mounted/recessed mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Material
sheet steel
DIN Place Units
324
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
1400 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
35.2 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
36.608 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Object Classification Code
U
