2CPX054502R9999
Part Number: 2CPX054502R9999
Product Information
Extended Description

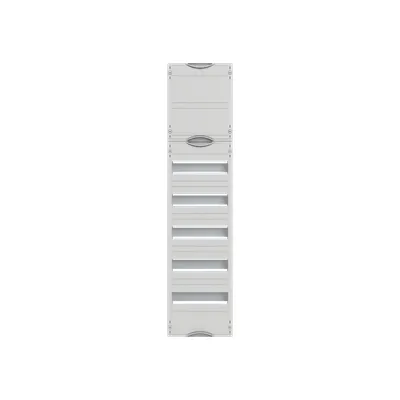

2CPX054502R9999 ABB: Interior fitting system, series Distribution panels, mounted on EDF-Profile, for DIN rail devices and DIN rail terminals, Rated operational voltage 400V AC 50 Hz, dimensions in mm (H x W x D): 1050 x 250 x 110, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 110 mm, without N/PE without terminal
Rated Operational Voltage
Maximum 400 V
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
12
Number of Rows
5
Cover Plate Type
With notch
Enclosure Type
Interior fitting system
Enclosure Type of Height
3
Accessories Available
Yes
DIN Place Units
84
Module Function
DIN rail devices and DIN rail terminals
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type CA
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
110 mm
Section Width
1
Product Net Weight
3.378 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.513 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type CA
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
Object Classification Code
U
Standards
DIN 43880
