2CPX056097R9999
Part Number: 2CPX056097R9999
Product Information
Extended Description

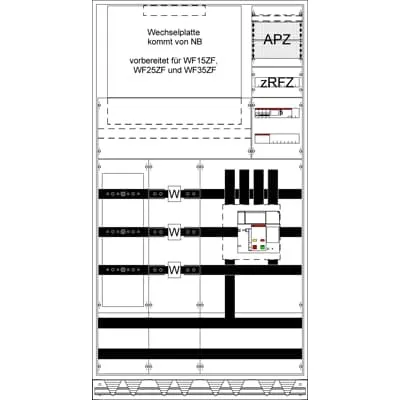

2CPX056097R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 585 A, Rated current of the assembly of switchgear and controlgear InA 585 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1950 x 1050 x 400, Earthing system TN-S, 5-pole, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), busbar system Cu busbars 50 x 10 mm 5-pole, parting point before the current transformer Space for 2 Fuse switch disconnector NH1/2/3, current transformer range CT mounting pad with CT rail 250 x 40 x 10 mm, parting point after the current transformer Net protection system coupling switch circuit breaker XT7, PE+N-busbar Cu 40 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 4, Space units 576, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
585 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
4
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
576
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP55
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
3
Product Net Width
1050 mm
Product Net Height
1950 mm
Product Net Depth / Length
400 mm
Section Width
4
Product Net Weight
128.215 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
133.344 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram WX42E4S
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
Object Classification Code
U
Standards
DIN EN 61439-2
