2CPX056149R9999
Part Number: 2CPX056149R9999
Product Information
Extended Description

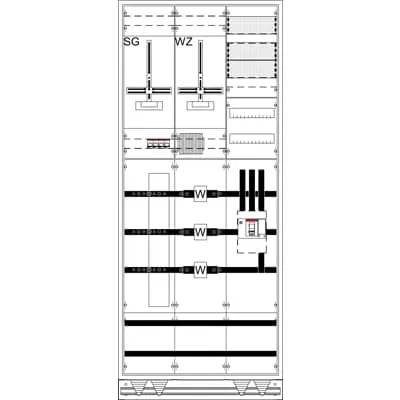

2CPX056149R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 420 A, Rated current of the assembly of switchgear and controlgear InA 420 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1950 x 800 x 400, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 4 low voltage path switches B10/36kA overvoltage path category 4, busbar system Cu busbars 30 x 10 mm 5-pole, parting point before the current transformer Space for 1 Fuse switch disconnector NH1/2/3 and reserve space for 1 Fuse switch disconnector NH1/2/3, current transformer range CT mounting pad with CT rail 170 x 40 x 10 mm, parting point after the current transformer Switch 630 A / 3-pole, PE+N-busbar Cu 30 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP55
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1950 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
205.826 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
214.059 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram WX32KK11S
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
Object Classification Code
U
Standards
DIN EN 61439-2
