2CPX056180R9999

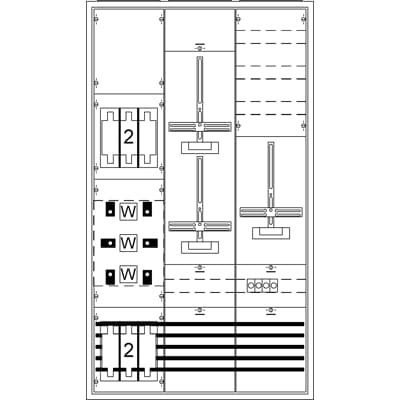

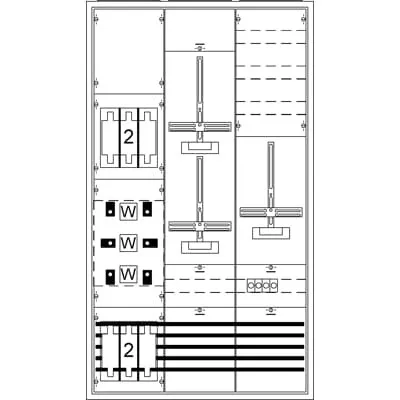

2CPX056180R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, Powder-coated, in RAL 7035, enclosure out of Sheet steel / Plastic, single-leaf door, door hinge right or left, dimensions in mm (H x W x D): 1400 x 800 x 225, Earthing system TN-S, 5-pole, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: metering transformer conversion board KF414 required, Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
