ABB 2CPX060248R9999 Interior Fitting System - CE
Part Number: 2CPX060248R9999
Quick Summary
ABB 2CPX060248R9999 interior fitting system provides modular panel support for distribution boards and meters. Engineers often struggle with space constraints and time-consuming installations in crowded enclosures. It carries CE conformity, RoHS compliance under EU Directive 2011/65/EU and the REACH regulation, with dates 2024-09-03 and 2024-09-02 respectively. This lightweight plastic interior component features a 250 mm width by 88 mm height, and a net weight of 0.11 kg, enabling quicker mounting and easier reconfiguration. For panel builders and OEMs, this achieves regulatory assurance and reduced waste while integrating smoothly with CombiLine N systems and transverse partitions.
Product Information
Extended Description

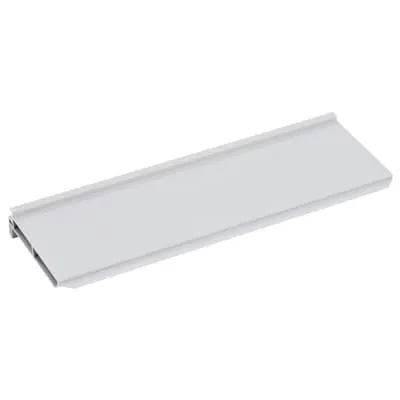

2CPX060248R9999 ABB: ZX203 Transverse Partition 1F. R;ZX203 Transverse Partition 1F. R
Enclosure Type
Interior fitting system
Surface Finishing
Untreated
Material
Plastic
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
88 mm
Product Net Weight
0.11 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.114 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC000770 - Separation plate for meter-/distribution boards
ETIM 9
EC000770 - Separation plate for meter-/distribution boards
eClass
V11.0 : 27142412
Object Classification Code
U
The interior fitting system is designed for meter and distribution boards, delivering a lightweight plastic enclosure with an untreated surface finish that reduces overall panel weight and material costs. Regulatory compliance is built in, with RoHS and REACH declarations and explicit CE certification, helping customers avoid costly non-compliance penalties. The 250 mm by 88 mm footprint supports compact layouts, enabling faster installation and easier future reconfigurations in evolving control cabinets. ETIM and eClass classifications (EC000770; 27142412) ensure clear data compatibility with procurement and ERP systems. The product’s packaging—pack 1 piece with a gross weight of 0.114 kg—facilitates safe, predictable shipping and on-site handling. Compatibility with Transverse Partition ZX203 enhances modularity and serviceability in CombiLine N installations. WEEE scope notes simplify end-of-life planning, while the real-world weight and dimension data aid accurate space planning for OEMs.
Get a Quick Quote for a ABB 2CPX060248R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX060248R9999?
Enquire Now
FAQs
The interior fitting system is designed for meter and distribution boards and aligns with the 250 mm by 88 mm footprint. Install within the panel using standard mounting approaches and integrate with transverse partitions ZX203 for modularity. Each unit is lightweight at 0.11 kg, packaged as a single piece (pack 1). The design supports quick mounting, easier reconfiguration, and maintains CE, RoHS, and REACH compliance during installation.
The product is specified for use with ABB CombiLine N distribution panels and supports interior fittings within that ecosystem. It carries ETIM and eClass classifications for seamless data exchange, and its 250x88 mm footprint aligns with typical CombiLine N interior configurations. The inclusion of transverse partitions such as ZX203 enhances modularity and serviceability, reducing change-out times during upgrades or reconfigurations.
Yes. It carries a CE Declaration of Conformity for the Distribution Panel System CombiLine N, and complies with RoHS Directive 2011/65/EU and its 2015/863 amendment, with RoHS date 2024-09-03. The REACH Declaration confirms no substances over 0.1 mass percentage, with REACH date 2024-09-02. This combination supports regulatory compliance throughout the product lifecycle.
Ordering units are sold as pack 1 piece. The Package Level 1 Gross Weight is 0.114 kg, with a Product Net Weight of 0.11 kg. The Product Net Width is 250 mm and Product Net Height is 88 mm, providing a compact footprint for inventory planning. The packaging design supports safe shipping and straightforward handling on site.
Yes. The ETIM classifications EC000770 describe separation plates for meter-/distribution boards, and the ZX203 transverse partition integration supports such configurations. The 250x88 mm footprint is compatible with typical interior layouts, enabling clean separation of conductor paths and improving diagnostics and maintenance access in ABB's distribution panel ecosystem.
