2CPX060446R9999
Part Number: 2CPX060446R9999
Product Information
Extended Description

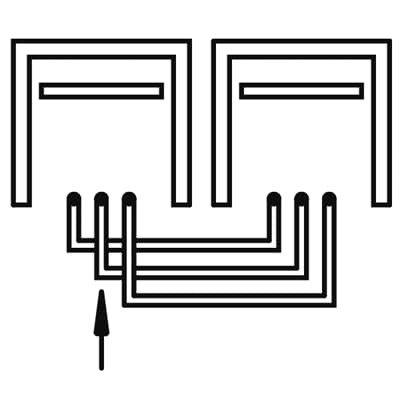

2CPX060446R9999 ABB: busbars as busbar system, dimensions: 30 x 5 mm, with a length of 300 mm, dimensions: 30 x 5 mm, Screw connectors M11, for a rated current of 440 A, N/PE-busbar system, 3-pole, packaging unit 1 piece
Suitable For
MT242|MT244
Rated Current (In)
440 A
Rated Service Short-Circuit Breaking Capacity (Ics)
25 kA
Number of Poles
3P
Number of Mountable Devices
2
Enclosure Type
N/PE-busbar system
Surface Finishing
Untreated
Material
Copper
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
1ce6329e-d705-471a-ae7f-1139dff875d2 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
300 mm
Product Net Height
170 mm
Product Net Depth / Length
70 mm
Product Net Weight
2.33 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.423 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001900 - Busbar system for distribution boards
ETIM 9
EC001900 - Busbar system for distribution boards
eClass
V11.0 : 27400613
Object Classification Code
U
Standards
DIN 43673-1
