2CPX061046R9999
Part Number: 2CPX061046R9999
Product Information
Extended Description

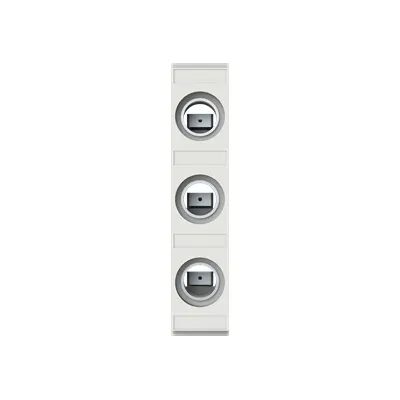

2CPX061046R9999 ABB: Bus-mounting fuse block 25A E27, 3-pole
Suitable For
ED55A|ED56A|MR102|MR102H|MR103H|MR202|MR302
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
25 A
Model Number
Fitted screw
Number of Poles
3P
Cover Plate Type
Cover
Device
E27
Enclosure Type
Protective devices
Mounting Type
Rail system
Material
Plastic
DIN Place Units
0
Meter Boards
0
Fuse Size
DII
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
42 mm
Product Net Height
40 mm
Product Net Depth / Length
200 mm
Product Net Weight
0.272 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.283 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000094 - D-system fuse base
ETIM 9
EC000094 - D-system fuse base
eClass
V11.0 : 27142103
Object Classification Code
U
