2CPX062437R9999
Part Number: 2CPX062437R9999
Product Information
Extended Description

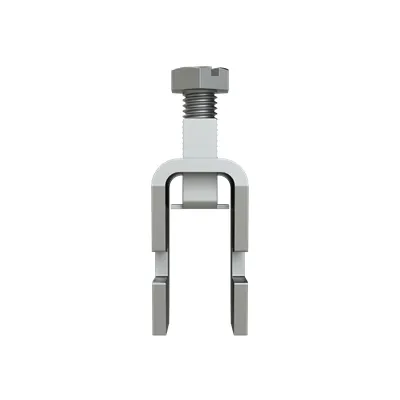

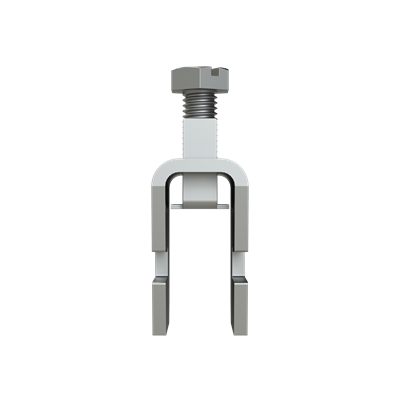

2CPX062437R9999 ABB: Connection terminal, to snap on copper busbar with retaining spring, Area of application for copper rail thickness: 5 mm, Connection cross-section from 16 mm² up to 120 mm², Terminals, 1-pole, packaging unit 50 piece
Suitable For
Other
Number of Poles
1P
Connection Type
Busbar
Enclosure Type
Terminals
Mounting Type
Snap mounting
DIN Place Units
0
Meter Boards
0
Rated Cross-Section
120 mm
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
23.5 mm
Product Net Height
60 mm
Product Net Depth / Length
26.5 mm
Product Net Weight
5.3 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.616 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000001 - Busbar terminal
ETIM 9
EC000001 - Busbar terminal
eClass
V11.0 : 27141146
Object Classification Code
U
