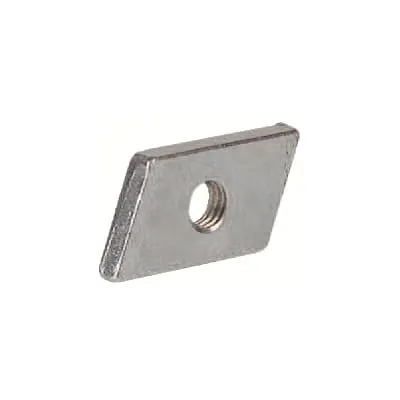

ABB 2CPX062509R9999 Slide Nut - Interior Fitting System CE Conformity
Part Number: 2CPX062509R9999
Quick Summary
ABB 2CPX062509R9999 Slide Nut provides a precise, secure mounting for aluminum profile rails in panel enclosures, enabling reliable assembly in control cabinets and distribution panels. Engineers often struggle with misalignment, play, and time-wasting retightening during modular frame assembly; this inlay nut delivers consistent preload and fast, tool-driven installation. This part carries CE conformity for Distribution Panel System CombiLine N and RoHS/REACH compliance, ensuring regulatory peace of mind across global deployments. With a compact 20x14x4 mm footprint and an M5 thread, plus compatibility with profile No. 1 and No. 2 rails, it simplifies sourcing and expands design flexibility for ABB profile-based systems.
Product Information
Extended Description
2CPX062509R9999 ABB: Inlay nut for profile rails, L x W x D in mm: 20 x 14 x 4, M5, suitable for aluminum profile rails, profile No. 1 (25 x 14 mm) and profile No. 2 (25 x 20 mm)
Enclosure Type
Interior fitting system
Thread Type
Metric
Surface Finishing
Galvanic/electrolytic zinc plated
Material
Steel
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
20 mm
Product Net Height
14 mm
Product Net Depth / Length
4 mm
Product Net Weight
0.052 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.054 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000096 - Slide nut
ETIM 9
EC000096 - Slide nut
eClass
V11.0 : 23110716
Object Classification Code
U
The M5 thread and compact 20x14x4 mm footprint provide a low-profile fastener option, reducing installed height while delivering reliable clamping forces, which improves panel enclosure stability and simplifies rail-conduit alignment in cabinet assemblies. The steel construction with galvanic/electrolytic zinc plating offers superior corrosion resistance, delivering long-term reliability in aggressive industrial environments and reducing maintenance costs. Compatibility with aluminum profile rails No. 1 and No. 2 expands design flexibility and minimizes part variety, enabling quicker bill-of-materials decisions and streamlined procurement for modular frames. RoHS and REACH compliance simplifies regulatory audits and accelerates global deployments, supporting corporate sustainability goals and customer approvals. WEEE scope alignment and ETIM classification as a slide nut help with cataloguing and lifecycle planning, while a lightweight 0.052 kg mass supports cost-efficient, large-volume panel builds. Overall, this part supports faster installation, lower total cost of ownership, and robust performance in tight spaces.
Get a Quick Quote for a ABB 2CPX062509R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062509R9999?
Enquire Now
FAQs
The slide nut fits aluminum profile rails No. 1 (25 x 14 mm) and No. 2 (25 x 20 mm) with an M5 thread. It is designed for interior fitting systems and uses a 20x14x4 mm footprint to match the specified rails, making it ideal for panel buildups and distribution panels.
The integrated M5 thread and compact 20x14x4 mm size enable quick and secure mounting with fewer fasteners, reducing misalignment and rework. Its steel construction with galvanic zinc plating resists corrosion, delivering durable performance in busy industrial environments and speeding up start-up times during cabinet assembly.
Yes. The product carries CE conformity for the Distribution Panel System CombiLine N, RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, and REACH declarations. These certifications support regulatory acceptance across multiple regions and simplify supplier qualification for global projects.
Yes. The slide nut is designed for use with interior fitting systems in both vertical and horizontal orientations within ABB profile-based assemblies. Its M5 thread and compatible rail profiles ensure secure seating and stable performance in various mounting contexts, including machine guards and control panels.
The net weight is 0.052 kg with a pack configuration of 1 piece per package and a gross weight of 0.054 kg. This compact weight reduces shipping costs in bulk orders and simplifies stock planning for large-scale panel builders, contributing to a favorable total cost of ownership over project lifecycles.
