ABB 2CPX062516R9999 Interior Fitting System - DIN 912 M6 x 12
Part Number: 2CPX062516R9999
Quick Summary
ABB 2CPX062516R9999 Interior Fitting System provides secure, compact mounting for panel assemblies in control enclosures. Engineers often struggle with alignment, vibration, and maintenance when fastening equipment inside tight spaces. This solution carries CE certification with EU Declaration of Conformity, RoHS compliance under Directive 2011/65/EU and Amendment 2015/863, and REACH declarations for safe, compliant operation. Designed for panel builders and automation engineers, it simplifies sourcing with a DIN 912 compatible M6 x 12 mm fastener and captive spring washer, delivering consistent torque and reduced fastener fallout. The robust steel, galvanic zinc plating, and standardized dimensions enable rapid replacement and scalable installations across projects, improving maintenance cycles and inventory control.
Product Information
Extended Description

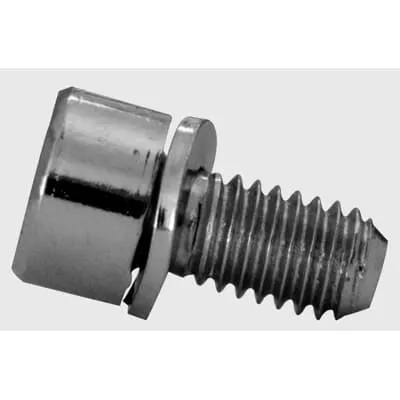

2CPX062516R9999 ABB: Hexagon socket head cap screw and captive spring washer, DIN 912, M6 x 12 mm.
Enclosure Type
Interior fitting system
Head Type
Cheese head
Thread Type
Metric
Surface Finishing
Galvanic/electrolytic zinc plated
Material
Steel
Recommended Screw Driver
Internal Hexagon
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
6 mm
Product Net Height
6 mm
Product Net Depth / Length
12 mm
Product Net Weight
0.02 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.02 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC003861 - Bolt
ETIM 9
EC003861 - Bolt
Object Classification Code
U
Feature → Business Impact → Application: The interior fitting system combines a hexagon socket head cap screw with a captive spring washer (DIN 912, M6 x 12 mm). This pairing delivers secure retention in vibration-prone enclosures, reducing maintenance downtime and part churn. Ideal for panel assemblies in automation cabinets and distribution panels where tight, repeatable mounting matters. Feature → Business Impact → Application: Steel with galvanic/electrolytic zinc plating provides superior corrosion resistance in harsh industrial environments. This translates to longer service life, lower replacement costs, and fewer maintenance interruptions. Suitable for outdoor-rated cabinets, damp factory floors, and equipment racks exposed to routine cleaning or humidity. Feature → Business Impact → Application: Cheese head profile and internal hex drive create a low-profile, access-friendly fastener in tight spaces. It enables faster installations with minimal tool wear and reduced risk of cam-out. Apply in interior fittings inside compact ABB enclosures and other 6x6 grid panels. Feature → Business Impact → Application: Precisely 6 mm by 6 mm by 12 mm dimensions with a weight of 0.02 kg support predictable BOM planning and consistent alignment. This improves torque consistency, speeds assembly, and simplifies inventory management across multiple projects. Feature → Business Impact → Application: RoHS and REACH declarations reduce regulatory risk and support sustainability reporting. The product's compliance streamlines audits, supplier qualification, and customer acceptance for regulated panel systems such as CombiLine N. Feature → Business Impact → Application: Broad compatibility with ABB distribution panel systems and ETIM classifications ensures interoperability with existing parts catalogs. The result is streamlined sourcing, lower SKU proliferation, and faster maintenance operations across large control- and power-panel deployments.
Get a Quick Quote for a ABB 2CPX062516R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062516R9999?
Enquire Now
FAQs
Yes. The fastener is designed around DIN 912, M6 x 12 mm standard dimensions, ensuring compatibility with common interior fittings and most control enclosures. The internal hex drive and captive washer provide reliable torque retention, even in vibration-prone panels, reducing re-work during installation.
The internal hex drive minimizes tool slippage in cramped cavities, enabling precise torque application with standard hex drivers. Combined with the cheese head, this design preserves a low profile while delivering secure clamping, which is essential for high-density panel configurations and quick maintenance cycles.
Ideal for interior fitting in distribution panels and CombiLine N systems, it supports reliable mounting of components within compact enclosures. Its 6x6x12 mm footprint and steel construction suit diverse panel-building scenarios, from new builds to retrofit projects, while maintaining regulatory compliance.
The product carries CE certification with EU Declaration of Conformity, RoHS compliance under Directive 2011/65/EU and Amendment 2015/863, and REACH declarations. WEEE and ETIM classifications further support compliant procurement and interoperability in regulated environments.
Using a DIN-standard M6 x 12 mm fastener from ABB reduces SKU fragmentation and simplifies sourcing across projects. Its longevity, corrosion resistance, and high compatibility with ABB panels lead to lower replacement costs, shorter maintenance windows, and improved uptime in automated facilities.
