ABB 2CPX062518R9999 Interior Fitting System - RoHS
Part Number: 2CPX062518R9999
Quick Summary
ABB 2CPX062518R9999 interior fitting system enables secure panel mounting inside electrical enclosures. It addresses installer headaches from misaligned panels, corrosion, and unreliable fasteners in harsh environments. The part is RoHS and REACH compliant and carries CE conformity for EU projects. With DIN 912 M6 x 20 mm compatibility and an internal hex drive, installation is fast and consistent. Standardizing this component reduces SKU complexity and improves supply chain reliability for panel builders.
Product Information
Extended Description

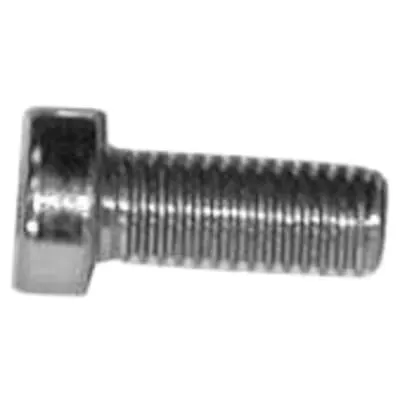

2CPX062518R9999 ABB: Hexagon socket head cap screw, DIN 912, M6 x 20 mm.
Enclosure Type
Interior fitting system
Head Type
Cheese head
Thread Type
Metric
Surface Finishing
Galvanic/electrolytic zinc plated
Material
Steel
Recommended Screw Driver
Internal Hexagon
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
6 mm
Product Net Height
6 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.062 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.062 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC003861 - Bolt
ETIM 9
EC003861 - Bolt
Object Classification Code
U
Feature: Interior fitting system with a DIN 912 M6 x 20 mm hex socket cap screw. Business Impact: Enables standardized, repeatable panel assembly across enclosures, reducing installation time and error rates. Application: Used in ABB CombiLine and similar distribution panels where reliable panel retention is critical. Feature: Cheese head design with internal hex drive. Business Impact: Flush profile minimizes snag hazards in tight spaces and improves surface finish. Application: Ideal for enclosures with restricted access or close-clearance mounting. Feature: Steel construction with galvanic/electrolytic zinc plating. Business Impact: Provides durable corrosion resistance and long service life in humid or dusty environments. Application: Suitable for control panels and interior fittings exposed to industrial atmospheres. Feature: Regulatory compliance (RoHS, REACH, CE). Business Impact: Reduces regulatory risk and supports European market entry and traceability. Application: Satisfies supplier sustainability goals and customer requirements. Feature: Lightweight packaging and clear labeling (pack 1 piece). Business Impact: Simplifies inventory management and reduces handling costs. Application: Efficient for high-volume panel assembly lines. Feature: Recommended screwdriver (internal hexagon). Business Impact: Improves on-site installation speed and reduces the need for specialized tools. Application: Field service and assembly teams benefit from standard toolsets.
Get a Quick Quote for a ABB 2CPX062518R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062518R9999?
Enquire Now
FAQs
Yes. This part uses the DIN 912 standard with an M6 x 20 mm length, designed to fit common enclosure interior fittings and ABB CombiLine panels. Use the internal hex drive for rapid, tool-friendly installation and ensure thread engagement follows OEM guidelines to prevent cross-threading.
The cheese head, metric-thread bolt is steel with galvanic zinc plating, offering good corrosion resistance for indoor and mildly humid environments. For torque guidance, follow DIN 912 M6 recommendations and the enclosure manufacturer’s torque specs to avoid over-tightening and ensure consistent clamping force.
Yes. The component is RoHS compliant, REACH declared, and CE-conformant, with explicit declarations for the Distribution Panel System CombiLine N. It’s designed to meet EU Directive 2011/65/EU and amendment 2015/863 for reliable cross-border use.
Primarily used in electrical enclosures, control panels, and distribution boards within automation and energy sectors. It supports rapid assembly, reliable panel retention, and durable finishes in panel-building workflows, particularly where ABB products or CombiLine components are involved.
Standardized fasteners reduce SKU proliferation, shorten installation time, and improve maintenance predictability. The galvanic zinc finish offers durable corrosion protection, lowering replacement frequency and service costs over the panel’s lifecycle.
