ABB 2CPX062523R9999 Interior fitting system - M4.8x16 RoHS
Part Number: 2CPX062523R9999
Quick Summary
ABB 2CPX062523R9999 is an interior fitting system screw designed for secure enclosure panel assembly in control cabinets. Engineers often struggle with mounting reliability and panel aesthetics in tight spaces, where loose fittings can compromise safety and uptime. This part carries RoHS information, REACH declarations, and a CE conformity statement to help satisfy regulatory requirements while maintaining performance. With a compact 4.8x4.8x16 mm footprint and galvanised steel, it delivers predictable fastening durability. The Phillips-Slotted drive enables fast, tool-friendly installation in constrained interiors, supporting efficient maintenance and reduced total cost of ownership.
Product Information
Extended Description

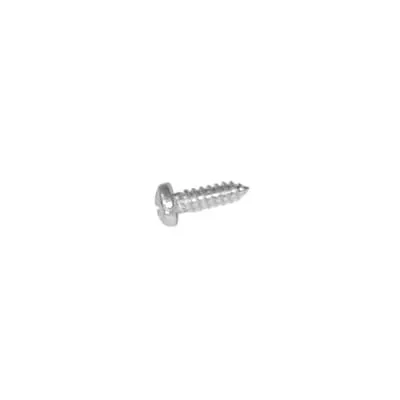

2CPX062523R9999 ABB: Lens tapping screw, M4.8 x 16 mm.
Enclosure Type
Interior fitting system
Head Type
Rounded head
Surface Finishing
Galvanic/electrolytic zinc plated
Material
Steel
Recommended Screw Driver
Phillips Slotted
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
4.8 mm
Product Net Height
4.8 mm
Product Net Depth / Length
16 mm
Product Net Weight
0.022 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.023 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC003861 - Bolt
ETIM 9
EC003861 - Bolt
Object Classification Code
U
Feature: Steel with galvanic/electrolytic zinc plating. Business Impact: Corrosion resistance extends enclosure longevity in harsh environments, reducing maintenance intervals and replacement costs. Application: Ideal for distribution panels and control cabinet interiors where reliability is critical. Feature: Interior fitting system with rounded head. Business Impact: Flush mounting reduces snag hazards and improves panel aesthetics, enabling safer, cleaner installations in tight spaces. Application: Enclosures requiring unobtrusive fasteners with minimal protrusion. Feature: M4.8 x 16 mm dimensions with weight of 0.022 kg. Business Impact: Compact form factor supports dense panel layouts and quick installation, improving throughput in assembly lines. Application: Small- to mid-size electrical enclosures in automation systems. Feature: Driven by Phillips Slotted screwdriver. Business Impact: Familiar tooling reduces training needs and speeds onboarding for maintenance teams. Application: Retrofit and new-build projects where standard screwdrivers are preferred. Feature: Compliance data: RoHS, REACH, CE declarations; WEEE status. Business Impact: Risk mitigation for regulatory audits and safer supply chains, ensuring traceability and material compliance. Application: Industrial automation projects with strict sustainability and safety requirements. Feature: ETIM classification EC003861 Bolt; 0 DIN Place Units to 0 Meter Boards. Business Impact: Improves cross-system compatibility and procurement clarity, easing spec alignment across projects. Application: Panel assemblies across ABB and partner components in automation networks.
Get a Quick Quote for a ABB 2CPX062523R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX062523R9999?
Enquire Now
FAQs
Yes. The 4.8x4.8x16 mm interior fitting system screws are designed for enclosure panels in control cabinets and fits standard 4.8 mm applications. The rounded head and Phillips-Slotted drive simplify installation with common tooling, reducing fitment errors. They integrate smoothly with distribution panels and CombiLine N systems, delivering reliable retention in tight spaces.
Key specs include M4.8 x 16 mm dimensions, steel with galvanic zinc plating, and a rounded head suited for flush mounting. Performance benefits comprise corrosion resistance, robust retention under vibration, and ease of installation with familiar screwdriver types. The compact footprint supports dense panel layouts while maintaining mechanical strength for enclosure fastening.
Best suited for automation, electrical distribution, and control panel assemblies in manufacturing, energy, and process industries. Its corrosion resistance, RoHS/REACH compliance, and CE declarations make it reliable for harsh environments while meeting strict regulatory requirements. It is particularly effective where cable management and neat interiors are essential for maintenance efficiency.
The component carries RoHS compliance (Directive 2011/65/EU and amendment 2015/863), REACH declarations, and a CE Declaration of Conformity. It is listed under ETIM as EC003861 Bolt, with a WEEE category indicating it is not in scope for disposal under WEEE in certain jurisdictions. These certifications support compliance during audits and across global supply chains.
The combination of corrosion resistance, a simple Phillips-Slotted drive, and a compact footprint reduces maintenance time and replacement frequency in automated systems. Standard tooling minimizes downtime during servicing, while regulatory compliance reduces risk of non-compliance fines. Overall, lifecycle costs decrease due to longer service intervals and safer, faster panel inspections.
